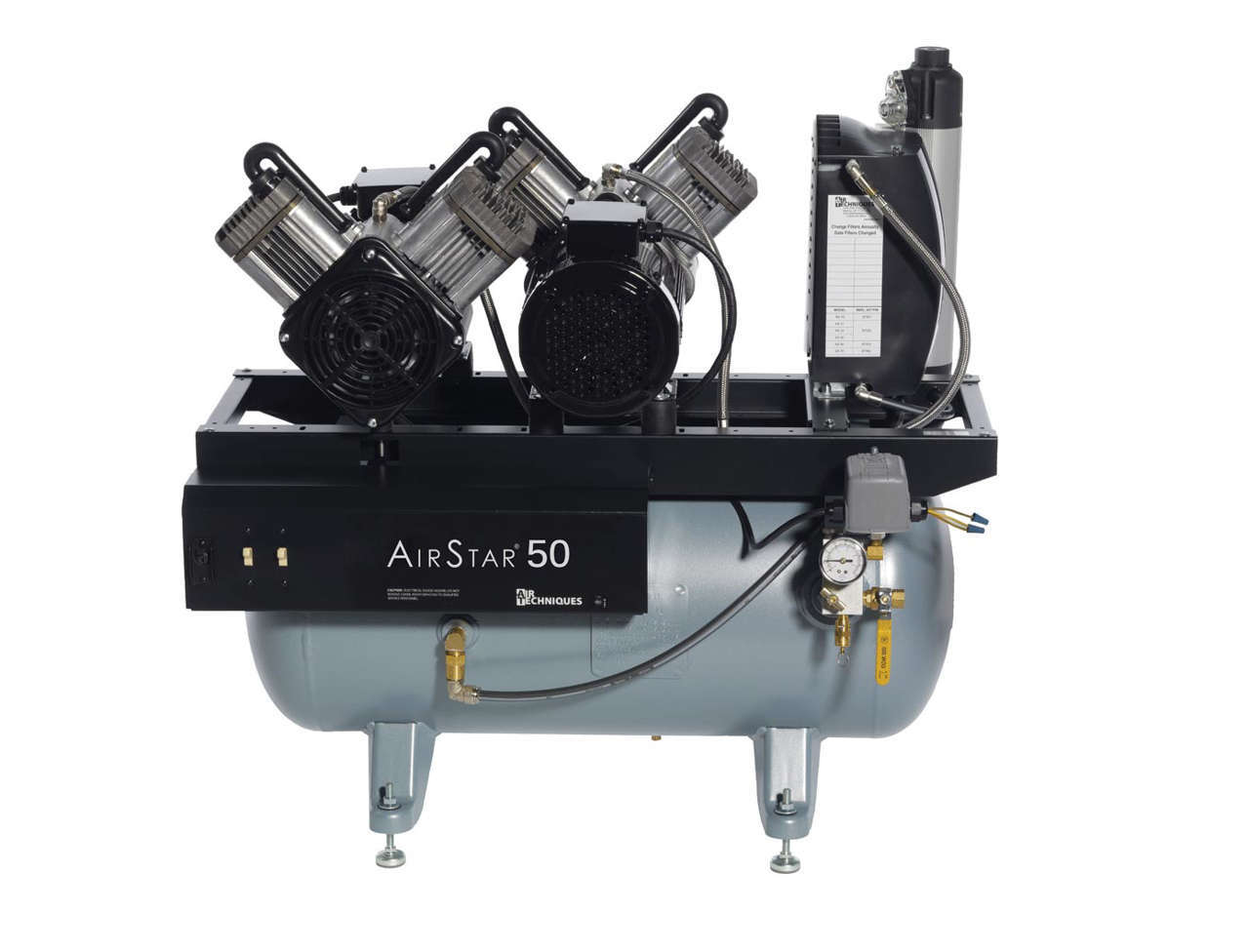

AirStar 50 Air Compressor (5-8 Simultaneous Users) - Air Techniques
The AirStart 50 can service up-to 8 simultaneous users. Specialized engineers put every AirStar Compressor – constructed from parts made in our 200,000 square foot facility – through rigorous and repetitive testing at our in-house laboratories. From design to install, Air Techniques is there every step of the way. AirStar50 provides 100% oil-less, dry air performance. AirStar Virus-Bacteria Filters are used in conjunction with the Membrane Drying unit and have been independently tested by the SGS Frisenius Institute showing retention of greater than 99.99995% for all particles regardless of size.
REVOLUTIONARY COMPRESSOR WITH MEMBRANE DRYER TECHNOLOGY
- 100% oil-less, dry air performance
- AirStar Virus-Bacteria Filters are used in conjunction with the Membrane Drying unit and have been independently tested by the SGS Frisenius Institute showing retention of greater than 99.99995% for all particles regardless of size.
- Keep your patients safe from viruses and microorganisms
- Antimicrobial tank interior powder coating
- Exclusive Membrane Dryer Technology
- Quadruple filtered – once at the compressor head, twice at the dryer, and again as it leaves the tank – to ensure it is cleaner and drier than ever before
- A low-pressure dew point – less than that required by NFPA standards – eliminates damp conditions and lowers humidity levels
UNSURPASSED QUALITY
- AirStar stores compressed air at a humidity level of about 20% – significantly lower than hazardous levels
- Sized for your practice, Compact shape for space saving installation
- Linear Teflon-bonded piston, long-stroke compression
- Default 85-115 psi (cut-in/out) pressure switch settings
- Sound cover available
Real-Time Monitoring
Vision Monitor brings valuable information from your critical dental equipment directly to those who need to see it. Through cloud-based IoT monitoring, get live status updates, device messages, and the ability to provide remote support and configuration. Whether you are managing equipment from a single office or 200 or more offices, Vision Monitor has features to ensure your equipment will quickly, and easily notify you with detailed, relevant information.
Intelligence, Simplified
• SPECIFIC: Don’t get lost in charts and information overload. Vision monitor provides clear, pertinent information for you to keep your equipment running.
• SCALABLE: Whether you are monitoring a single office, or 200 or more, Vision Monitor can support your needs.
• SECURE: Encryption and data security up to the highest industry standards
• SENSIBLE: No additional hardware required! Use the existing assets in your office to connect your devices to the cloud.*
*No additional hardware is required to connect to Vision Monitor on equipment with an existing network connection. Connect Box is required to monitor legacy equipment.
Specifications
Part Number |
AS50 |
Simultaneous Users |
5 - 8 |
Compressor Head |
Twin 1.5 HP |
CFM @ 80psi (Cubic Ft./Min.) |
10.0 |
Tank Size (Gallons) |
20 |
Voltage Rating (V) |
220 |
Voltage (Min/Max) |
198/242 |
Panel Breaker (A) |
20 |
Wire Size (Gauge) |
12 |
Weight (Lbs) |
290 |
Dimensions W x H x D (inches) |
35.5 x 33.5 x 20.5 |
Dimensions w/Sound Cover W x H x D (inches) |
36.5 x 33.5 x 22.75 |
